Product Summary

The AD704J is a quad, low power bipolar op amp that has the low input bias current of a BiFET amplifier but which offers a significantly lower IB drift over temperature. It utilizes Superbeta bipolar input transistors to achieve picoampere input bias current levels (similar to FET input amplifiers at room temperature), while its IB typically only increases by 5´ at +125℃ (unlike a BiFET amp, for which IB doubles every 10℃ resulting in a 1000x increase at +125℃). Furthermore the AD704J achieves 75 mV offset voltage and low noise characteristics of a precision bipolar input op amp. The applications of the AD704J include Industrial/Process Controls, Weigh Scales, ECG/EKG Instrumentation, Low Frequency Active Filters.

Parametrics

AD704J absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±VS; (3)Differential Input Voltage: ±0.7 V; (4)Output Short Circuit Duration (Single Input): Indefinite; (5)Storage Temperature Range: (Q): –65℃ to +150℃, (N, R): –65℃ to +125℃; (6)Operating Temperature Range: 0℃ to +70℃; (7)Lead Temperature Range (Soldering 10 seconds): +300℃.

Features

AD704J features: (1)High DC Precision: 75 μV max Offset Voltage, 1 mV/℃ max Offset Voltage Drift, 150 pA max Input Bias Current, 0.2 pA/℃ typical IB Drift; (2)Low Noise: 0.5 μV p-p typical Noise, 0.1 Hz to 10 Hz; (3)Low Power: 600 μA max Supply Current per Amplifier; (4)Chips & MIL-STD-883B Processing Available; (5)Available in Tape and Reel in Accordance with EIA-481A Standard; (6)Single Version: AD705, Dual Version: AD706.

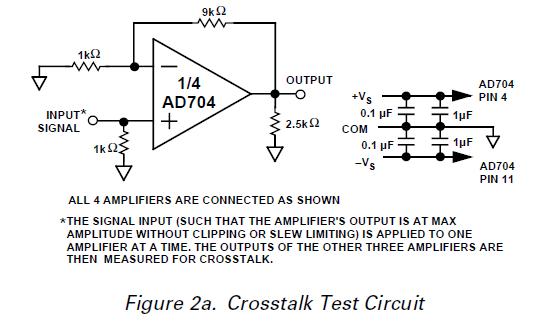

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

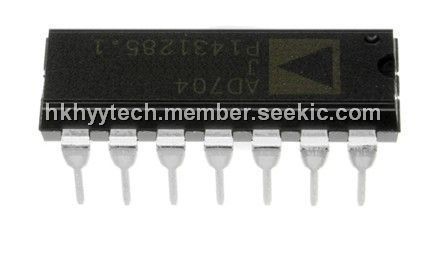

AD704J
AD704J

Other


Data Sheet

Negotiable
AD704JN
AD704JN

Analog Devices Inc

IC BIPOLAR OPAMP QUAD 14-DIP

Data Sheet

1-50: $4.27
AD704JNZ
AD704JNZ


IC OPAMP GP QUAD PREC LN 14DIP

Data Sheet

0-1: $6.13
1-25: $5.03
25-100: $4.54
100-250: $4.17
250-500: $3.80
500-1000: $3.31
1000-2500: $3.27
AD704JR-16
AD704JR-16

Analog Devices Inc

IC PREC OPAMP BIPOL QUAD 16-SOIC

Data Sheet

1-47: $4.27
AD704JR-16-REEL
AD704JR-16-REEL

Analog Devices Inc

IC PREC OPAMP BIPOL QUAD 16-SOIC

Data Sheet

1-1000: $3.34
AD704JRZ-16
AD704JRZ-16


IC OPAMP GP QUAD PREC LN 16SOIC

Data Sheet

0-1: $6.13
1-10: $5.52
10-100: $4.54
100-250: $4.17
250-500: $3.80
500-1000: $3.31
1000-2500: $3.27
AD704JRZ-16-REEL
AD704JRZ-16-REEL


IC OPAMP GP QUAD PREC LN 16SOIC

Data Sheet

0-1: $6.32
1-10: $5.69
10-25: $5.17
25-100: $4.68
100-250: $4.29
250-500: $3.92
