Product Summary
The AD724JR is a low cost RGB to NTSC/PAL Encoder that converts red, green and blue color component signals into their corresponding luminance (baseband amplitude) and chrominance (subcarrier amplitude and phase) signals in accordance with either NTSC or PAL standards. These two outputs are also combined to provide composite video output. All three outputs of AD724JR can simultaneously drive 75 W, reverse-terminated cables. All logical inputs are TTL, 3 V and 5 V CMOS compatible. The chip operates from a single +5 V supply. No external delay lines or filters are required. The AD724JR may be powered down when not in use. The applications of the AD724JR include RGB to NTSC or PAL Encoding.
Parametrics
AD724JR absolute maximum ratings: (1)Supply Voltage, APOS to AGND: +6 V; (2)Supply Voltage, DPOS to DGND: +6 V; (3)AGND to DGND: –0.3 V to +0.3 V; (4)Inputs: DGND – 0.3 V to DPOS + 0.3 V; (5)Internal Power Dissipation: 800 mW; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: –65℃ to +125℃; (8)Lead Temperature Range (Soldering 30 sec): +230℃.
Features
AD724JR features: (1)Low Cost, Integrated Solution; (2)+5 V Operation; (3)Accepts FSC Clock or Crystal, or 4FSC Clock; (4)Composite Video and Separate Y/C (S-Video) Outputs; (5)Luma and Chroma Outputs Are Time Aligned; (6)Minimal External Components: No External Filters or Delay Lines Required, Onboard DC Clamp, Accepts Either HSYNC and VSYNC or CSYNC; (7)Phase Lock to External Subcarrier; (8)Drives 75 Ω Reverse-Terminated Loads; (9)Logic Selectable NTSC or PAL Encoding Modes; (10)Compact 16-Lead SOIC.

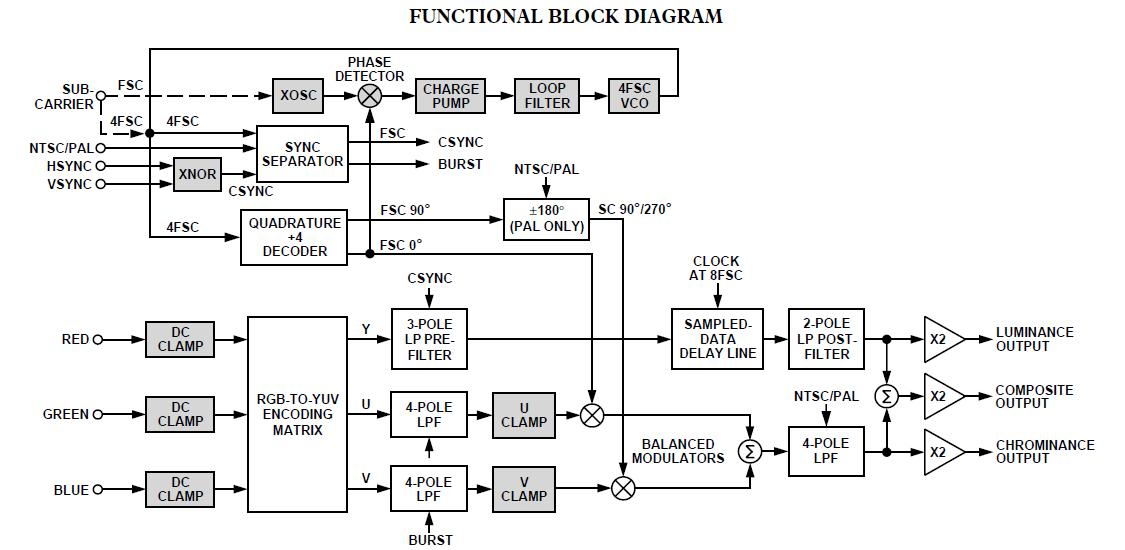

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD724JR |
|
IC ENCODER RGB TO NTSC 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD724JR-REEL |
|
IC ENCODER RGB TO NTSC 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD724JR-REEL7 |
|
IC ENCODER RGB TO NTSC 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD724JRZ |
|
IC ENCODER RGB TO NTSC 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
AD724JRZ-R7 |
|
IC ENCODER RGB TO NTSC 16SOIC TR |
Data Sheet |
|
|
||||||||||||||||
|
AD724JRZ-RL |
|
IC ENCODER RGB TO NTSC 16SOIC TR |
Data Sheet |
|
|
||||||||||||||||
