AD9883A

110 MSPS/140 MSPS, Analog Interface, QFM, 0.5 to 1.0V Analog Input Range, 3.3V Power Supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: AD9883A

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-08

From Other Seller

Part Number:AD9883A
US $0.10 - 100.00
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

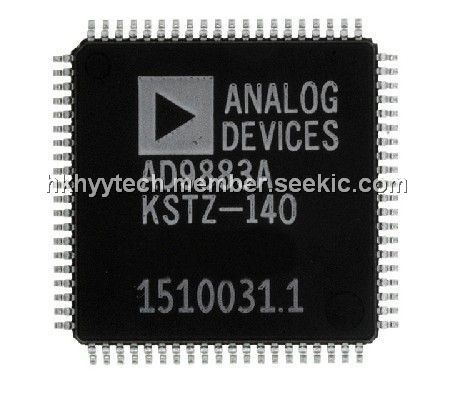

The AD9883A is a complete 8-bit, 140 MSPS, monolithic analog interface optimized for capturing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full power analog bandwidth of 300 MHz supports resolutions up to SXGA (1280 × 1024 at 75 Hz). The AD9883A includes a 140 MHz triple ADC with internal 1.25 V reference, a PLL, and programmable gain, offset, and clamp control. The user provides only a 3.3 V power supply, analog input, and Hsync and COAST signals. Three-state CMOS outputs may be powered from 2.5 V to 3.3 V. Fabricated in an advanced CMOS process, the AD9883A is provided in a space-saving 80-lead LQFP surface-mount plastic package and is specified over the –40℃ to +85℃ temperature range.

Parametrics

AD9883A absolute maximum ratings: (1)VD: 3.6 V; (2)VDD: 3.6 V; (3)Analog Inputs: VD to 0.0 V; (4)VREF IN: VD to 0.0 V; (5)Digital Inputs: 5 V to 0.0 V; (6)Digital Output Current: 20 mA; (7)Operating Temperature: -40℃ to +85℃; (8)Storage Temperature: -65℃ to +150℃; (9)Maximum Junction Temperature: 150℃; (10)Maximum Case Temperature: 150℃.

Features

AD9883A features: (1)Industrial Temperature Range Operation; (2)140 MSPS Maximum Conversion Rate; (3)300 MHz Analog Bandwidth; (4)0.5 V to 1.0 V Analog Input Range; (5)500 ps p-p PLL Clock Jitter at 110 MSPS; (6)3.3 V Power Supply; (7)Full Sync Processing; (8)Sync Detect for Hot Plugging; (9)Midscale Clamping; (10)Power-Down Mode; (11)Low Power: 500 mW Typical; (12)4:2:2 Output Format Mode.

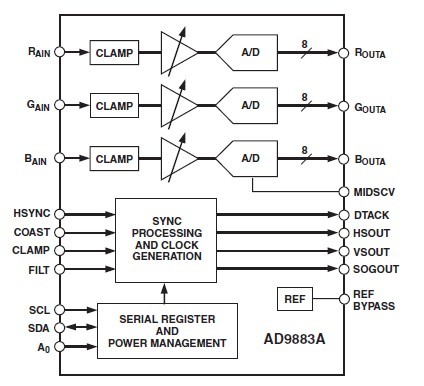

Diagrams


Part No

Mfg

Description

Pricing
(USD)

Quantity

AD9883A

Other

Data Sheet

Negotiable

AD9883A/PCB

Analog Devices Inc.

BOARD EVAL FOR AD9883A

Data Sheet

Negotiable

AD9883ABST-110

Analog Devices Inc
