Product Summary

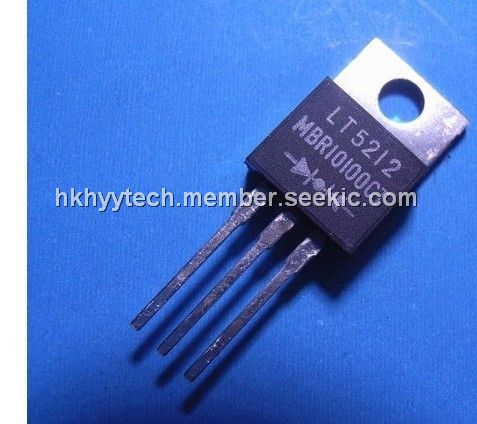

The MBR10100CT is a dual common-cathode high-voltage schottky rectifier. It is widely used in high frequency rectifier of switching mode power supplies, freewheeling diodes, dc-to-dc converters or polarity protection application.
Parametrics
MBR10100CT absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 100V; (2)Working peak reverse voltage, VRWM: 100V; (3)Maximum DC blocking voltage, VDC: 100V; (4)Maximum average forward rectified current at TC = 105℃, total device, IF(AV): 10A; (5)Maximum average forward rectified current at TC = 105℃, per diode, IF(AV): 5.0; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load per diode, IFSM: 120A; (7)Peak repetitive reverse current per diode at tp = 2 μs, 1 kHz, IRRM: 0.5A; (8)Voltage rate of change (rated VR), dV/dt: 10 000V/μs; (9)Operating junction and storage temperature range, TJ, TSTG: -65 to +150℃.
Features
MBR10100CT features: (1)Metal of siliconrectifier, majonty carrier conducton; (2)Guard ring for transient protection; (3)Low power loss high efficiency; (4)High surge capacity, High current capability.

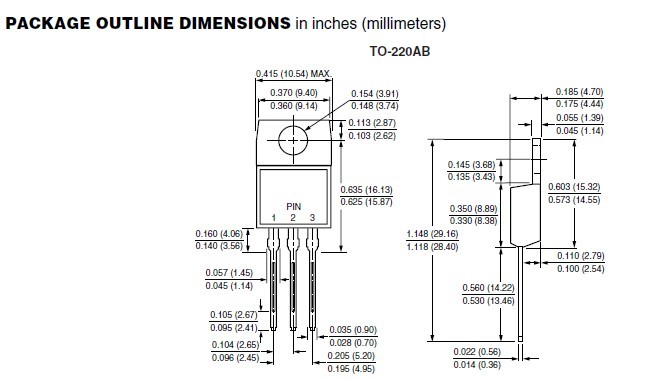

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBR10100CT |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 10A 100V |
Data Sheet |
|
|
||||||||||||
|
MBR10100CT/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
|
MBR10100CT-E3/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
|
MBR10100CT-E3/4W |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Dual 120 Amp IFSM |
Data Sheet |
|
|
||||||||||||
|
MBR10100CTP |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 100V 10A |
Data Sheet |
|
|
||||||||||||
|
MBR10100CT-BP |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 100V, 10A |
Data Sheet |
|
|
||||||||||||
