Product Summary

The 20L6P45 is a RECTIFIER MODULE. The applications of 20L6P45 are: (1)Three phase full wave bridge applications; (2)Inverter equipment for AC motor control; (3)Chopper equipment for DC motor control; (4)Dc supply for battery; (5)other power conversion equipment.

Parametrics

20L6P45 absolute maximum ratings: (1)Repetive Peak Reverse voltage: 800V; (2)Average Output Rectified current: 20A; (3)Peak One Cycle Surge Forward Current: 300 to 330A; (4)Junction Temperature: -40 to 150℃; (5)Storage Temperature: 40 to 125℃; (6)Screw Torque: 1.5 Nm; (7)Isolation Voltage: 2000V.

Features

20L6P45 features: (1)Repective Peak Reverse Voltage: 800V; (2)Average output rectified current: 20A; (3)Isolation Voltage: 2000V; (4)Single in line package.

Diagrams

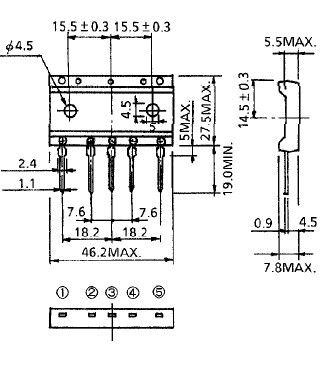

20L6P45 diagram
