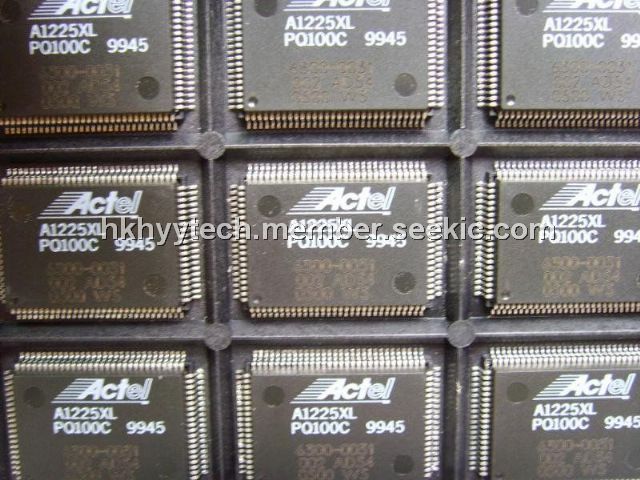

Product Summary

Actel Integrator Series FPGAs A1225XL are the first programmable logic devices optimized for high-speed system logic integration. Based on Actel proprietary antifuse technology and 0.6-micron double metal CMOS process, Integrator Series devices offer a fine-grained, register-rich architecture with embedded dual-port SRAM and wide-decode circuitry. Integrator Series 3200DX and 1200XL families were designed to integrate system logic which is typically implemented in multiple CPLDs, PALs, and FPGAs. The A1225XL provides the features and performance required for today complex, high-speed digital logic systems. The 3200DX family offers fast dual-port SRAM for implementing FIFOs, LIFOs, and temporary data storage. The large number of storage elements can efficiently address applications requiring wide datapath manipulation and transformation functions such as telecommunications, networking, and DSP.

Parametrics

A1225XL absolute maximum ratings: (1)VCC DC Supply Voltage: -0.5 to +7.0 V; (2)VI2 Input Voltage: -0.5 to VCC +0.5 V; (3)VO Output Voltage: -0.5 to VCC +0.5 V; (4)TSTG Storage Temperature: -65 to +150 ℃.

Features

A1225XL features: (1)2,500 to 30,000 Logic Gates; (2)Up to 3Kbits Configurable Dual-Port SRAM; (3)Fast Wide-Decode Circuitry; (4)Up to 250 User-Programmable I/O Pins; (5)225 MHz Performance; (6)5 ns Dual-Port SRAM Access; (7)100 MHz FIFOs; (8)7.5 ns 35-Bit Address Decode.

Diagrams

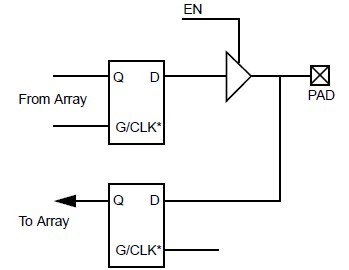

A1225XL I/O Module
