Product Summary
The AD1896A is a 24-bit, high performance, single-chip, secondgeneration asynchronous sample rate converter. Based on Analog Devices experience with its first asynchronous sample rate converter, the AD1890, the AD1896A offers improved performance and additional features. This improved performance of the AD1896A includes a THD + N range of –117 dB to –133 dB depending on the sample rate and input frequency, 142 dB (A-Weighted) dynamic range, 192 kHz sampling frequencies for both input and output sample rates, improved jitter rejection, and 1:8 upsampling and 7.75:1 downsampling ratios. Additional features include more serial formats, a bypass mode, better interfacing to digital signal processors, and a matched-phase mode. The applications of the AD1896A are: Home theater systems; Studio digital mixers; Automotive audio systems, DVD, Set-top boxes; Digital audio effects processors, Studio-to-transmitter links; Digital audio broadcast equipment; Digitaltape varispeed applications.
Parametrics
AD1896A absolute maximum ratings: (1)Power Supplies VDD_CORE –0.3 +3.6 V; (2)VDD_IO –0.3 +6.0 V; (3)Digital Inputs Input Current ±10 mA; (4)Input Voltage DGND – 0.3 VDD_IO + 0.3 V; (5)Ambient Temperature (Operating) –40 +105 ℃.
Features
AD1896A features: (1)Automatically Senses Sample Frequencies; (2)No Programming Required; (3)Attenuates Sample Clock Jitter; (4)3.3 V–5 V Input and 3.3 V Core Supply Voltages; (5)Accepts 16-/18-/20-/24-Bit Data; (6)Up to 192 kHz Sample Rate; (7)Input/Output Sample Ratios from 7.75:1 to 1:8; (8)Bypass Mode; (9)Multiple AD1896 TDM Daisy-Chain Mode; (10)Multiple AD1896 Matched-Phase Mode; (11)142 dB Signal-to-Noise and Dynamic Range(A-Weighted, 20 Hz–20 kHz BW); (12)Up to –133 dB THD + N; (13)Linear Phase FIR Filter; (14)Hardware Controllable Soft Mute; (15)Supports 256 x fS, 512 x fS, or 768 x fS Master Mode Clock.

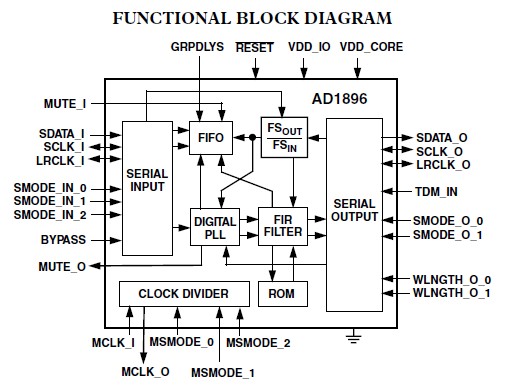

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1896AYRSRL |
Analog Devices Inc |
IC SAMP-RATEHP/CONV 24BIT 28SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
AD1896AYRSZRL |
|
IC SAMP-RATEHP/CONV 24BIT 28SSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD1896AYRSZ |
|
IC CONV SAMPLE RATE ASYNC 28SSOP |
Data Sheet |
|
|
||||||||||||||||
|
AD1896AYRS |
Analog Devices Inc |
IC CONV SAMPLE RATE ASYNC 28SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||
