ADUC832BSZ

Product Summary

The ADUC832BSZ is a complete smart transducer front end, integrating a high performance self-calibrating multichannel 12-bit ADC, dual 12-bit DACs, and programmable 8-bit MCU on a single chip. The ADUC832BSZ operates from a 32 kHz crystal with an on-chip PLL generating a high frequency clock of 16.77 MHz. This clock is, in turn, routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The ADUC832BSZ microcontroller core is an 8052 and therefore 8051 instruction set compatible with 12 core clock periods per machine cycle. 62 kBytes of nonvolatile Flash/EE program memory are provided on-chip. 4 kBytes of nonvolatile Flash/EE data memory, 256 bytes RAM, and 2 kBytes of extended RAM are also integrated on-chip.

Parametrics

ADUC832BSZ absolute maximum ratings: (1)AVDD to DVDD: –0.3 V to +0.3 V; (2)AGND to DGND: –0.3 V to +0.3 V; (3)DVDD to DGND, AVDD to AGND: -0.3 V to +7 V; (4)Digital Input Voltage to DGND: -0.3 V to DVDD + 0.3 V; (5)Digital Output Voltage to DGND: -0.3 V to DVDD + 0.3 V; (6)VREF to AGND: –0.3 V to AVDD + 0.3 V; (7)Analog Inputs to AGND: –0.3 V to AVDD + 0.3 V; (8)Operating Temperature Range Industrial: -40℃ to +125℃; (9)Operating Temperature Range Industrial: –40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Junction Temperature: 150℃; (12)θJA Thermal Impedance: 90℃/W; (13)θJA Thermal Impedance: 52℃/W; (14)Lead Temperature, Soldering, Vapor Phase (60 sec): 215℃; Infrared (15 sec): 220℃.

Features

ADUC832BSZ features: (1)8-Channel, 247 kSPS 12-Bit ADC; (2)DC Performance: ±1 LSB INL; (3)AC Performance: 71 dB SNR; (4)DMA Controller for High Speed ADC-to-RAM Capture; (5)2 12-Bit (Monotonic) Voltage Output DACs; (6)Dual Output PWM; (7)On-Chip Temperature Sensor Function ±3℃; (8)On-Chip Voltage Reference; (9)62 kBytes On-Chip Flash/EE Program Memory; (10)4 kBytes On-Chip Flash/EE Data Memory; (11)Flash/EE, 100 Yr Retention, 100 kCycles Endurance; (12)2304 Bytes On-Chip Data RAM; (13)8051 Compatible Instruction Set (16 MHz Max); (14)32 kHz Ext Crystal, On-Chip Programmable PLL; (15)12 Interrupt Sources, 2 Priority Levels; (16)Dual Data Pointer; (17)Extended 11-Bit Stack Pointer; (18)Specified for 3 V and 5 V Operation; (19)Normal, Idle, and Power-Down Modes; (20)Power-Down: 25 μA @ 3 V with Wake-Up cct Running.

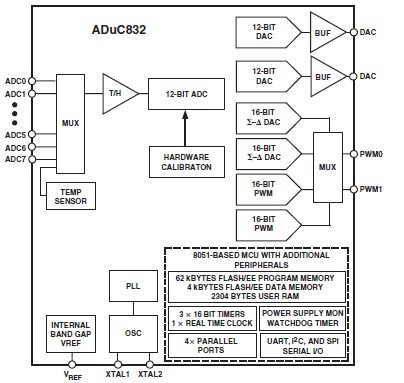

Diagrams
