Product Summary

The SK36 is a surface mount schottky barrier rectifier. The case of this product is SMC, molded plastic.

Parametrics

SK36 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage, VRRM: 60V; (2)Maximum RMS Voltage, VRMS: 42V; (3)Maximum DC Blocking Voltage, VDC: 60 V; (4)Maximum Average Forward Rectified Current, I(AV): 3.0A; (5)Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC Method), IFSM: 100A; (6)Maximum Instantaneous Forward Voltage at 3.0A, VF: 0.75V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage @ TA = 25℃, IR: 0.5mA; (8)Maximum DC Reverse Current at Rated DC Blocking Voltage @ TA = 100℃, IR: 20mA; (9)Maximum Thermal Resistance, RθJL: 10℃/W; (10)Maximum Thermal Resistance, RθJA: 60℃/W; (11)Typical Total Capacitance,CT: 300 pF; (12)Operating and Storage Temperature Range, TJ, TSTG: -65 to +150℃.

Features

SK36 features: (1)Guard Ring Construction for Transient Protection; (2)High Current Capability and Low VF; (3)Capable of Meeting Environmental Standards of MIL-STD-19500; (4)Plastic Material - UL Flammability Classification 94V-0.

Diagrams

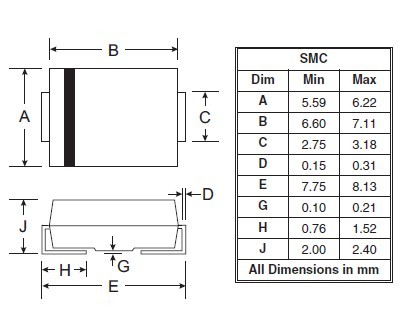

SK36 package outline dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

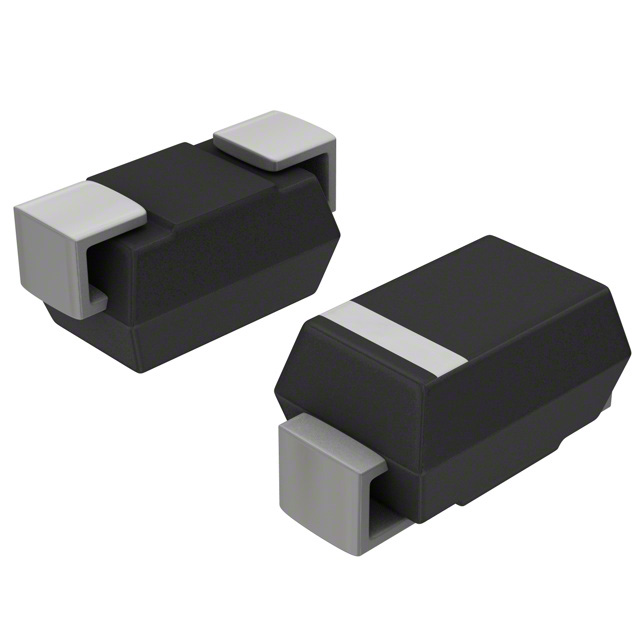

SK36
SK36

RECT SCHOTTKY 3A 60V DO-214AB
Data Sheet
Negotiable
SK36-7
SK36-7
Diodes Inc.
Schottky (Diodes & Rectifiers) 3.0A 60V
Data Sheet
Negotiable
SK36-7-F
SK36-7-F
Diodes Inc.
Schottky (Diodes & Rectifiers) 3.0A 60V
Data Sheet
0-1: $1.15
1-10: $1.03
10-100: $0.81
100-250: $0.72
250-500: $0.64
