Product Summary

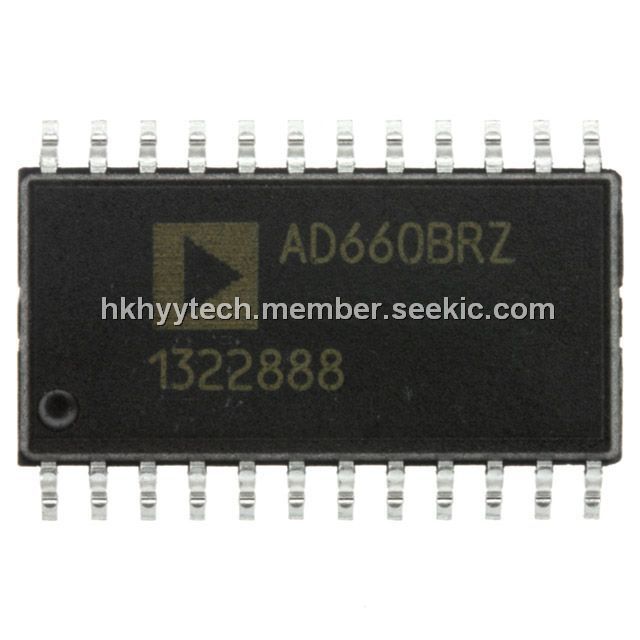

The AD660BRZ is a complete 16-bit monolithic D/A converter with an on-board voltage reference, double buffered latches and output amplifier. The AD660BRZ is manufactured on Analog Devices’ BiMOS II process. This process allows the fabrication of low power CMOS logic functions on the same chip as high precision bipolar linear circuitry. The AD660BRZ has an extremely flexible digital interface. Data can be loaded into the AD660BRZ in serial mode or as two 8-bit bytes. This is made possible by two digital input pins which have dual functions. The serial mode input format is pin selectable to be MSB or LSB first.
Parametrics
AD660BRZ absolute maximum ratings: (1)VCC to AGND:–0.3 V to +17.0 V; (2)VEE to AGND: +0.3 V to –17.0 V; (3)VLL to DGND:–0.3 V to +7 V; (4)AGND to DGND:±1 V; (5)Digital Inputs (Pins 5 through 23) to DGND:–1.0 V to +7.0 V; (6)REF IN to AGND:±10.5 V; (7)Span/Bipolar Offset to AGND:±10.5 V; (8)Ref Out, VOUT:Indefinite Short to AGND, DGND, VCC, VEE, and VLL; (9)Power Dissipation (Any Package): To +60℃:1000 mW, Derates above +60℃:8.7 mW/℃; (10)Storage Temperature:–65℃ to +150℃; (11)Lead Temperature Range(Soldering 10 sec):+300℃.
Features
AD660BRZ features: (1)Complete 16-Bit D/A Function; (2)On-Chip Output Amplifier; (3)On-Chip Buried Zener Voltage Reference; (4)±1 LSB Integral Linearity; (5)15-Bit Monotonic over Temperature; (6)Microprocessor Compatible; (7)Serial or Byte Input; (8)Double Buffered Latches; (9)Fast (40 ns) Write Pulse; (10)Asynchronous Clear (to 0 V) Function; (11)Serial Output Pin Facilitates Daisy Chaining; (12)Unipolar or Bipolar Output; (13)Low Glitch: 15 nV-s; (14)Low THD+N: 0.009%.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD660BRZ |
|
IC DAC 16BIT MONO W/VREF 24-SOIC |
Data Sheet |
|
|
||||||||||||||
|
AD660BRZ-REEL |
|
IC DAC 16BIT MONO W/VREF 24-SOIC |
Data Sheet |
|
|
||||||||||||||
