Product Summary
The EPM3032ATC44-10 is a low cost, high performance device based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the EEPROM based EPM3032ATC44-10 device operates with a 3.3V supply voltage and provides 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.
Parametrics
EPM3032ATC44-10 absolute maximum ratings: (1)VCC Supply voltage With respect to ground: –0.5 to 4.6 V; (2)VI DC input voltage: –2.0 to 5.75 V; (3)IOUT DC output current, per pin: –25 to 25 mA; (4)TSTG Storage temperature No bias: –65 to 150 ℃; (5)TA Ambient temperature Under bias: –65 to 135 ℃; (6)TJ Junction temperature PQFP and TQFP packages, under bias: 135 ℃.
Features
EPM3032ATC44-10 features: (1)High.performance, low.cost CMOS EEPROM.based programmable logic devices (PLDs) built on a MAXR architecture; (2)3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability - ISP circuitry compliant with IEEE Std. 1532; (3)Built.in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (4)Enhanced ISP features: Enhanced ISP algorithm for faster programming; ISP_Done bit to ensure complete programming; Pull-up resistor on I/O pins during in-system programming; (5)High.density PLDs ranging from 600 to 10,000 usable gates; (6)4.5.ns pin.to.pin logic delays with counter frequencies of up to 227.3 MHz; (7)MultiVoltTM I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0.V, 3.3.V, and 2.5.V logic levels; (8)Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), plastic J.lead chip carrier (PLCC), and FineLine BGATM packages; (9)Hot.socketing support; (10)Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance.

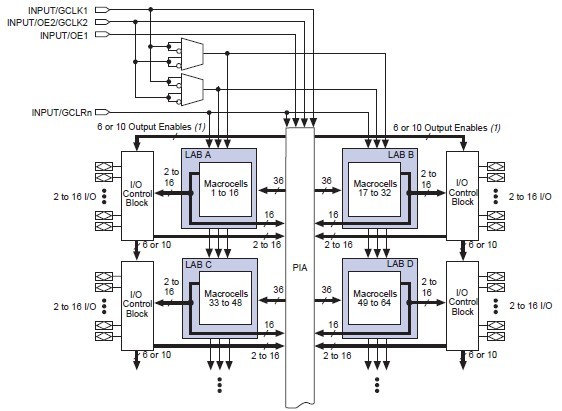

Diagrams
