Product Summary

The PCI9052G 32-bit, 33MHz PCI Target I/O Accelerator for 32-bit, 40MHz Generic and ISA Local Bus Designs.As PCI evolves in todays complex systems, PLX continues to provide market leading high performance 32-bit PCI solutions. In this tradition, PLX offers the PCI 9052 I/O Accelerator. The PCI9052G brings PLXs industry leading experience in the world of PCI designs to you in a way that is simple and convenient to use. The PCI9052G is the ideal choice for implementation of your 32-bit, 33MHz PCI bus target (slave) I/O Accelerator designs for you 32-bit 40MHz, Industry Standard Architecture (ISA) local bus, or generic designs.

Parametrics

PCI9052G characteristics:(1)32-bit, 33MHz PCI r2.1 compliant; (2)Up to 40MHz local bus operation; (3)ISA and Generic 32-bit, 40MHz local bus designs; (4)Glueless ISA interface for low cost adapters; (5)Supports multiplexed and nonmultiplexed 8-, 16-, and 32-bit generic local buses; (6)5V CMOS in 160-pin PQFP package.

Features

PCI9052G features:(1)32-bit, 33MHz PCI r2.1 compliant; (2)Up to 40MHz local bus operation; (3)ISA and Generic 32-bit, 40MHz local bus designs; (4)Glueless ISA interface for low cost adapters; (5)Supports multiplexed and nonmultiplexed 8-, 16-, and 32-bit generic local buses; (6)5V CMOS in 160-pin PQFP package; (7)Zero wait state burst operation– PCI unlimited bursts transfers at up to 132MB/s; (8)Direct slave data transfers–Access 8-, 16-, and 32-bit local; (9)bus devices; (10)Deferred reads, read ahead, posted writes, programmable read; (11)prefetch counter; (12)Move from 8MHz, 5MB/s ISA designs to leading 33MHz, ; (13)132MB/s PCI; (14)Low power consumption.

Diagrams

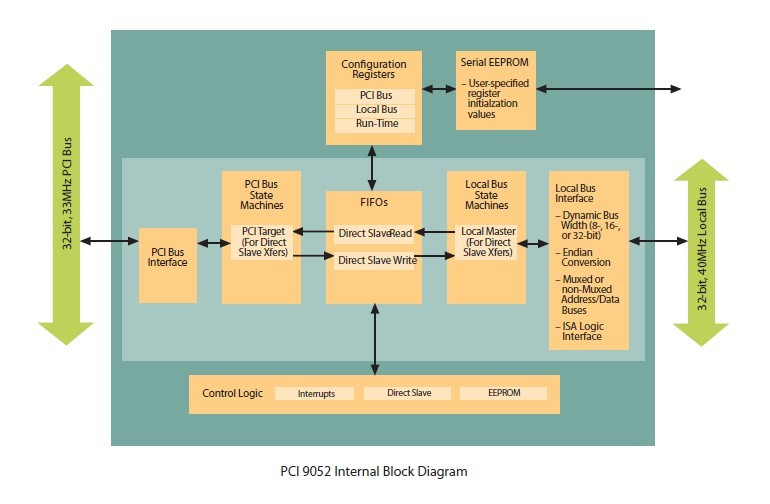

PCI9052G internal diagram block

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PCI9052G
PCI9052G

Other


Data Sheet

Negotiable
