Product Summary

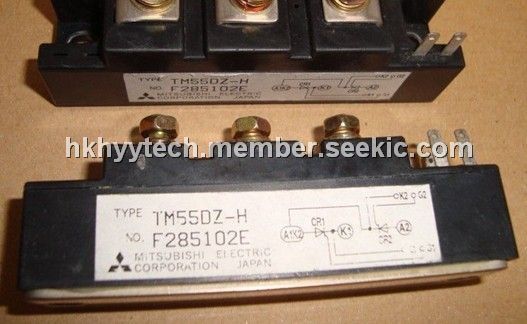

The TM55DZ-H is a medium power for general use. It is widely used in DC motor control, NC equipment, AC motor control, Contactless switches, E lectric furnace temperature control, Light dimmers.

Parametrics

TM55DZ-H absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 400 to 800V; (2)Non-repetitive peak reverse voltage, VRSM: 480 to 960V; (3)DC reverse voltage, VR (DC): 320 to 640V; (4)Repetitive peak off-state voltage, VDRM: 400 to 800V; (5)Non-repetitive peak off-state voltage, VDSM: 480 to 960V; (6)DC off-state voltage, VD (DC): 320 to 640V.

Features

TM55DZ-H features: (1)IT (AV) Average on-state current: 55A; (2)VRRM Repetitive peak reverse voltage: 400/800V; (3)VDRM Repetitive peak off-state voltage: 400/800V; (4)DOUBLE ARMS; (5)Insulated Type; (6)UL Recognized.

Diagrams

TM55DZ-H outline drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TM55DZ-H
TM55DZ-H

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TM55CZ-24
TM55CZ-24

Other


Data Sheet

Negotiable
TM55CZ-2H
TM55CZ-2H

Other


Data Sheet

Negotiable
TM55CZ-H
TM55CZ-H

Other


Data Sheet

Negotiable
TM55CZ-M
TM55CZ-M

Other


Data Sheet

Negotiable
TM55DZ/CZ-24,-2H
TM55DZ/CZ-24,-2H

Other


Data Sheet

Negotiable
TM55DZ-24
TM55DZ-24

Other


Data Sheet

Negotiable
